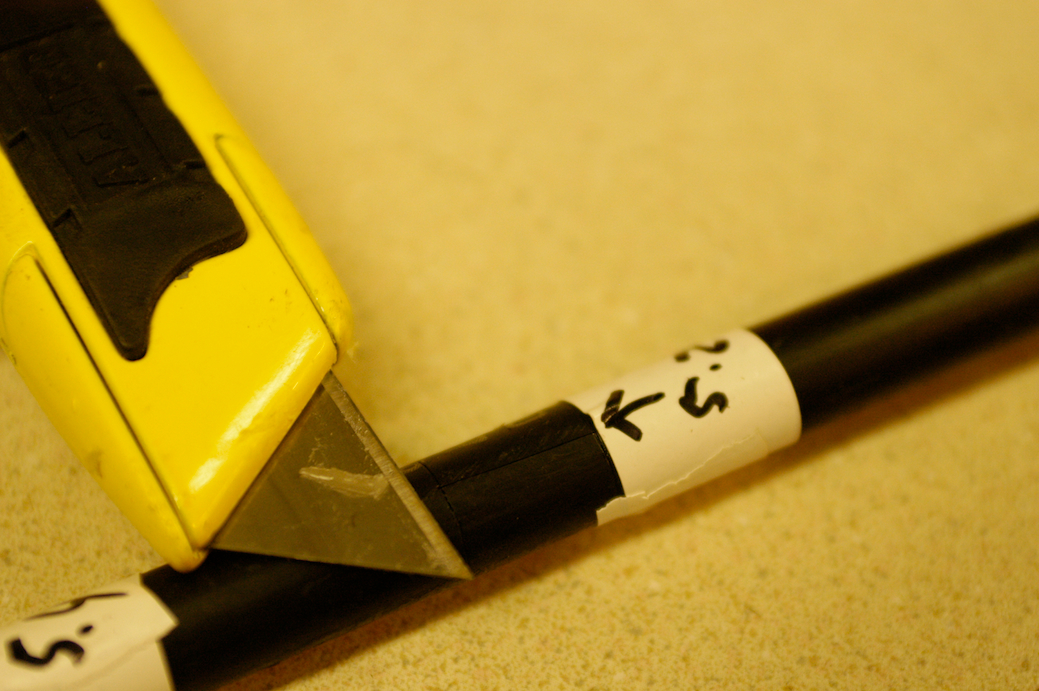

- Caption: This picture shows the three cuts made in the window opening process. In this case, the window references the view to the inside of the cable at this point. You can see the slice immediately to the left of the 5.2 arrow. That is roughly (+-2mm or so accuracy) where the thermistor bead will be located. the +-2mm references error with respect to where precisely the thermistor is soldered to the cable.
 |
